No dust
Online fully automatic PCB board splitter, self-feeding, waste board and finished board classification and discharge, meet the needs of automated production.
Equipped with high-speed CCD visual alignment correction device, it is particularly suitable for high-precision and high-capacity PCB splitting operations.
Adopting high-speed spindle for PCB cutting and splitting, it has small splitting stress, high precision, and is suitable for circuit boards of any shape.
Double table movement, can perform splitting cutting and circuit board placement at the same time, reduce waiting time, increase production capacity, and improve work efficiency.
Suitable for PCB splitting of small multi-connected boards such as mobile phones, digital cameras, GPS, PDA and MODULE.
Larger size is suitable for splitting large circuit boards such as digital TVs, PC hosts, workstations, servers, etc.
Various board collection solutions can be selected to achieve the purpose of fully automated manpower saving.
Maintenance time can be set.
Time to clean the dust filter bag.
The system will remind operators to perform maintenance on the equipment regularly.
By calling the existing program, fixture errors are avoided, enabling rapid program retrieval and quick changeover.
With over 30 years of independent software development, the PCB depaneling machine uses self-developed software, ensuring stability and reliability, and preventing board damage caused by bugs.
The PCB depaneling machine uses an integrated welded design structure, ensuring stability and high strength.
It is made of cast aluminum with a one-piece molding process, offering excellent oxidation resistance, no deformation, no displacement, long service life, and guaranteed precision.
Adopt High-Power Dust Collector
Dust Filtration with HEPA Grade
Equipped with Negative Pressure Detection, providing real-time alerts for dust collection status
Equipped with Floating Brushes (Invention Patent No. ZL201721620742.X) to enhance dust collection efficiency
Optional Central Control System: Unified management and real-time monitoring via network IP.
Remote Device Unified Management: Remote monitoring via mobile app.
| Items | GAM330AT |
| Valid cutting size | 350*300mm |
| Cutting Function | Tweening to straight line,circle and Are |
| Process table | Dual tables |
| Repeat precision | ±0.01mm |
| Cut precision | ±0.05mm |
| Loading method | Track convey |
| Unloading method | Conveyor or Track convey |
| Spindle speed | MAX80,000RPM |
| Spindle change method | Auto-tool change |
| Program teaching mode | Intuitive teaching by CCD color image input |
| Cut speed | 1-100mm/s |
| Milling bit size | 0.8-3.0mm |
| Pneumatic pressure requirment | 0.6MPa，，，， ，，160L/min |
| Dust Collector | TS300L |
| Cut spindle size(W*D*H) | 2105*1445*1705mm |
| Voltage/Power requirement | AC220V，，，， ，，1phase,50/60HZ，，，， ，，4KW |
| Weight | 800KG |

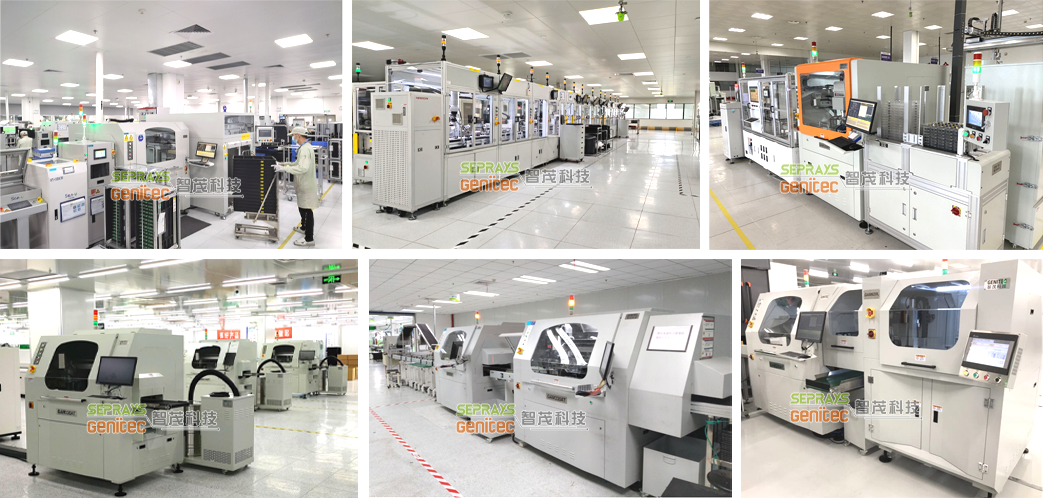

Online fully automatic PCB board splitter factory real shot application case:
