Improve the efficiency of board depaneling
Eliminate scrapped boards
Dust-Free & Low-Stress
Suitable for cutting high-component PCB boards of various complex shapes, flexible and efficient
Applicable to automotive electronics, medical, military and other fields;
Solve the problem of rapid line change and production conversion, and save the cost of tooling and fixture production.
Visual automatic recognition of cutting path;
Visual appearance inspection function after cutting;
Discharging can be connected to automated testing, Robot and other workstations;
Transplanting axis can rotate 0-180° to achieve mirroring, fork plate, OK, NG product screening and tray stacking functions.
High-speed dual-spindle panel splitting doubles production capacity
Suitable for cutting large PCB boards:
GAM330: 300*350mm
GAM330L: 450*500mm
GAM330X: 470*650mm
Small footprint
CCD vision automatic alignment system
Double-table cutting, cutting range 300*350mm
Small splitting stress, high precision, suitable for PCBA boards of any shape
Double-layer track, carrier reflow, and full-line automated production
Small footprint, more flexible placement.
High-power laser, sustainable processing.
Combination of precision and stability
Granite machine, cross-shaped structure.
X/Y axis is more stable, compact and easy to use.
Imported scanning galvanometer, control card and telecentric lens.
No high-voltage power supply, convenient, safe and easy to use.
Clean processing
Multi-function, automated
Dual platform, high speed, high precision
Easy and fast operation
Three-section track online, specially designed for SMT production line
No contact, no stress, low dust, fast and flexible, high production capacity
Laser stress-free board splitting,
Can cut PCBA/FPCA of any shape,
Micron-level high-precision cutting, automatic positioning, focusing, etc.;
The suction system can completely eliminate cutting exhaust gas, eliminating hazards and environmental pollution.
Ultra-high board separation efficiency
High precision, dust-free
Supports fast line change
Can be connected to front-end and back-end automation lines
It can cut V-groove connected PCB boards, LED aluminum substrates and copper substrates.
It can cut circuit boards with V-groove edge component distance greater than 0.2mm.
It uses cylinder pulling method for cutting, counting, automatic stop function, and safety.
The operator can operate safely and foolproof cutting to ensure that the operator cannot cut the PCB board badly.
The cutter probe uses the plane of the incision, and the board stress is less than 400 microstrain, which will not cause component damage.
The blade replacement cylinder is simple and convenient, which can solve the problem of bad board cutting caused by manual and knife-feeding board cutting machine.
Reduce stress and prevent cracking of solder joints;
Fixed during splitting to ensure product quality;
High efficiency, up to 300MM/S, adjustable speed;
High precision, easy maintenance, and high safety.
Simple small PCB splitter, high production efficiency, 1 second cutting
Can cut unlimited length PCB boards
Fast speed and high production capacity
High efficiency, 6 to 8 panels can be divided into one minute
One-piece casting
Stable and durable
No dust or residue
Unlimited length of split boards
Ordinary PCB depaneling machines for light strips can only cut a small piece at a time, so the entire board of light strips needs to be cut multiple times, which has low production efficiency.
Multi-blade and multi-group PCB depaneling machines can complete the cutting of the entire panel at one time, with ultra-high depaneling capacity.
High-precision positioning system: ±0.025mm repeatable positioning accuracy
Intelligent: intelligent error/duplicate code prevention
Imported laser, high stability, long life
Configurable optical fiber, carbon dioxide, ultraviolet, green light, multiple wavelengths, suitable for various applications
Fully automatic cleaning
100% clean
One-touch operation, the entire cleaning process is fully automatic, and the rinse liquid is automatically added and discharged without manual intervention.
The equipment has low energy consumption, low operating noise, no pollution, energy saving and environmental protection, overall stainless steel structure, and small footprint.
High efficiency
Cost saving
Environmentally friendly and pollution-free
Quality guaranteed
Prevent PCB warping, cracking and solder joint failure caused by stress
Seprays/Genitec was founded in Taiwan in 1993 as a research and development center. In 2002, it established a branch in Dongguan, which became a subsidiary in 2013, handling global sales and technical training. In 2003, a 20,000㎡ industrial plant for equipment production was built on land purchased in Zhejiang.

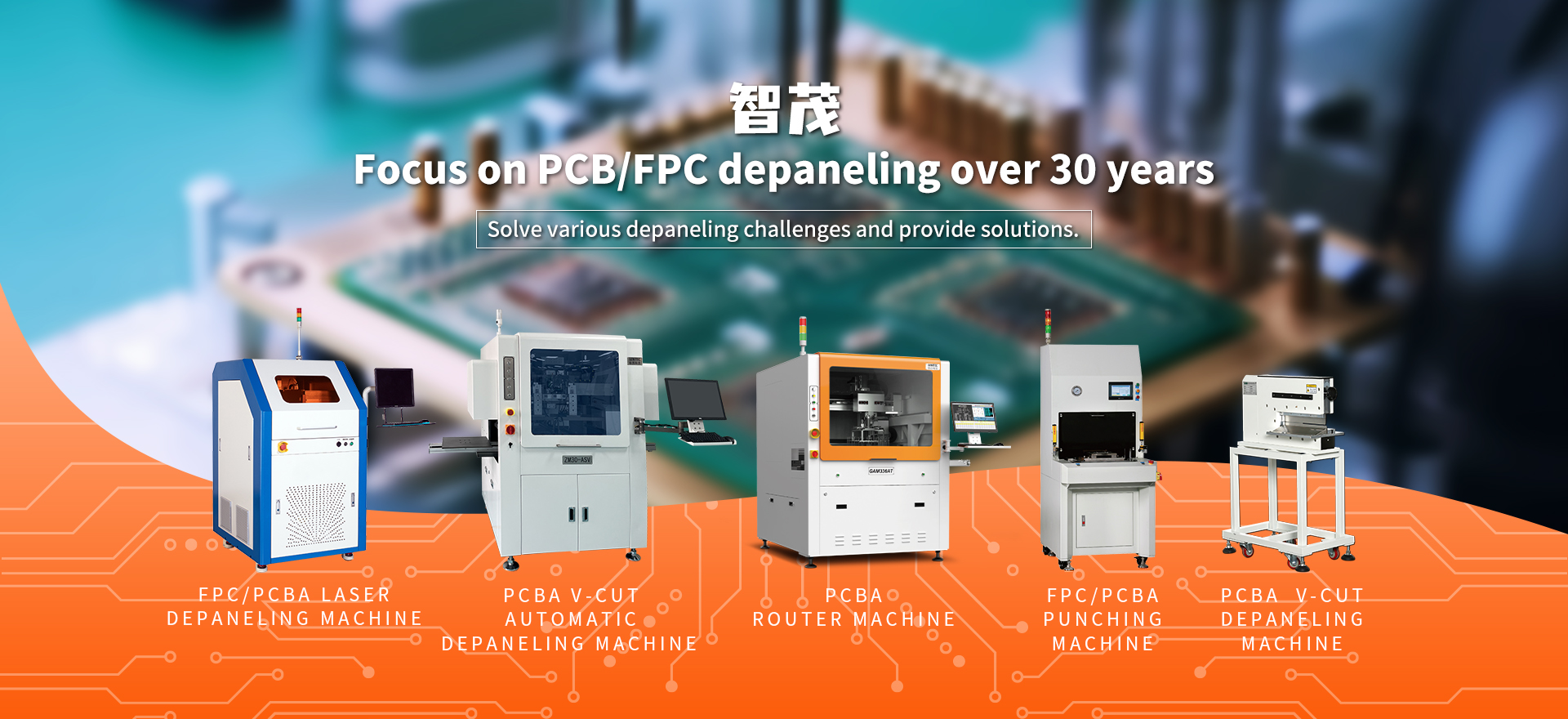

For over 30 years, Seprays/Genitec has focused on PCB/FPC depaneling, specializing in Router, laser, V-groove, and punching depaneling machines, as well as automated loading/unloading and palletizing solutions. It is a high-tech enterprise integrating R&D, production, sales, and service.

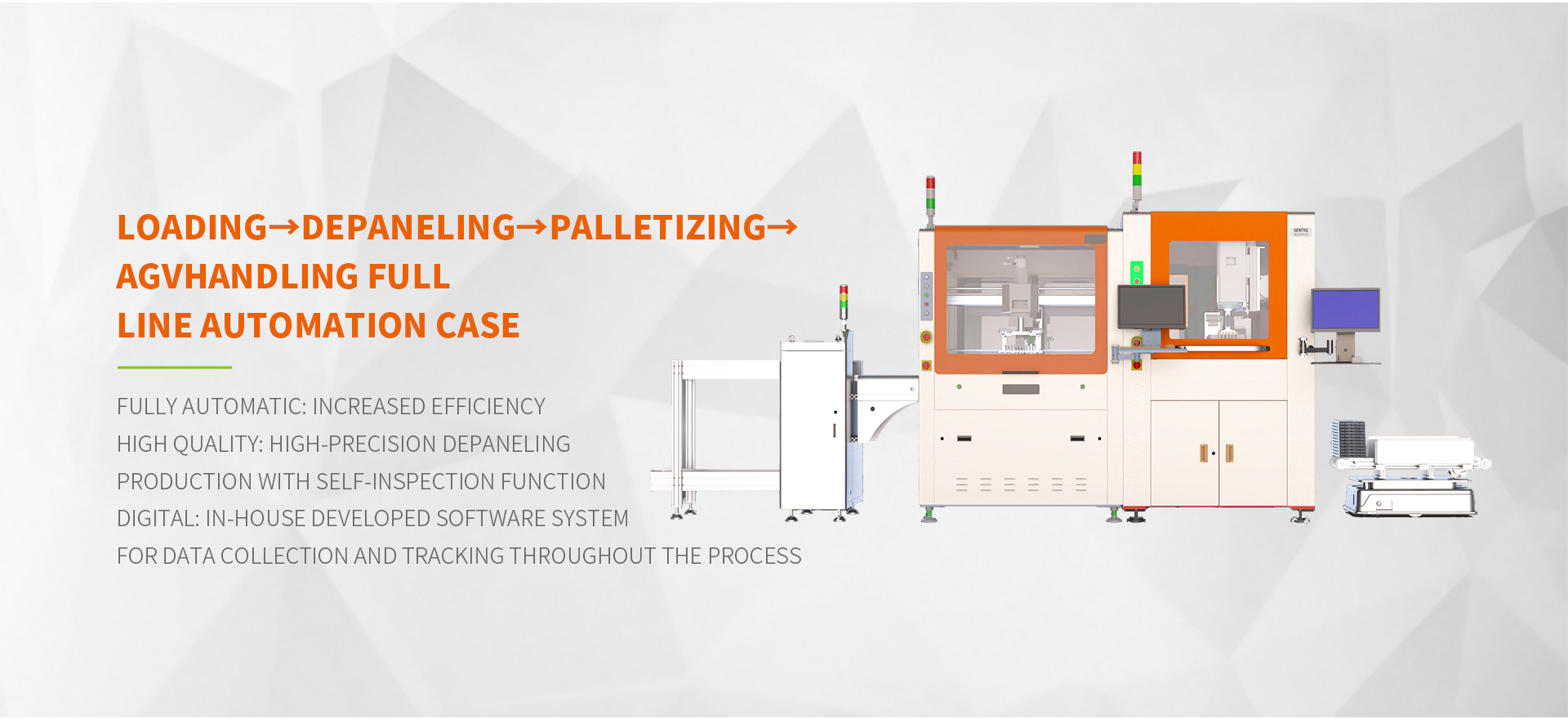

Fully Automated: Reduces labor and increases efficiency.
High Quality: Precision assembly production with self-inspection functionality.
Digitalization: Self-developed software system that collects data and tracks the entire process
Loading Machine → Laser Etching Machine → Printing Machine → SPI Testing Machine → Pick-and-Place Machine 2 → AOI Testing Machine → Reflow Soldering → AOI Testing Machine → Zhimao Online PCB Separator → Zhimao Sorting and Stacking Machine → AGV Cart
Streamlined process
High output
Labor cost savings
