Fully automatic PCB depaneling
High precision, dust-free
Low stress, high production capacity
The dual workbench can perform cutting and circuit board placement at the same time to provide production capacity.
The visual camera has automatic focus, and there is no need to adjust the focal length manually.
It adopts a high-speed spindle, with low cutting stress and high precision, and is equipped with an automatic tool change module to achieve automated operation.
The dust collector is equipped with dust detection and alarm function to ensure dust collection effect.
It is equipped with MES online function to provide a management system to integrate production data and monitor equipment status.
Imported high-speed, high-precision spindle.
Low cutting stress, smooth edges, and high precision.
High-precision spindle speed: 80,000 rpm/min
By calling the existing program, fixture errors are avoided, enabling rapid program retrieval and quick changeover.
With over 30 years of independent software development, the PCB depaneling machine uses self-developed software, ensuring stability and reliability, and preventing board damage caused by bugs.
The PCB depaneling machine uses an integrated welded design structure, ensuring stability and high strength.
It is made of cast aluminum with a one-piece molding process, offering excellent oxidation resistance, no deformation, no displacement, long service life, and guaranteed precision.
Adopt High-Power Dust Collector
Dust Filtration with HEPA Grade
Equipped with Negative Pressure Detection, providing real-time alerts for dust collection status
Equipped with Floating Brushes (Invention Patent No. ZL201721620742.X) to enhance dust collection efficiency
Optional Central Control System: Unified management and real-time monitoring via network IP.
Remote Device Unified Management: Remote monitoring via mobile app.
| Item | GAM340AT |
| Valid cutting size | 450*420mm |
| Cutting Function | Straight, L-shaped, U-shaped, Circular, Arc |
| Processing Table | Dual tables |
| Machine Repetition Accuracy | ±0.01mm |
| Cutting Accuracy | ≤±0.05mm |
| Loading Method | Track conveyor |
| Unloading Method | Belt conveyor or track conveyor(Option) |
| Spindle speed | MAX80,000RPM |
| Spindle Router bit Change Method | Automatic Tool Change |
| Program Teaching Method | CCD Image Intuitive Teaching Input |
| Router bit Detection Function | Equipped |
| Cutting speed | 1-100mm/s |
| Applicable Router bit size | ?0.8-3.0mm |
| Air Source Requirement | 0.6MPa,155L/min |
| Standard dust collector | TS200L |
| Dimensions(W*D*H) | 2222*1567*1706mm |
| Power Requirement | AC220V 50/60HZ 4KW Single phase |
| Weight | 1000KG |

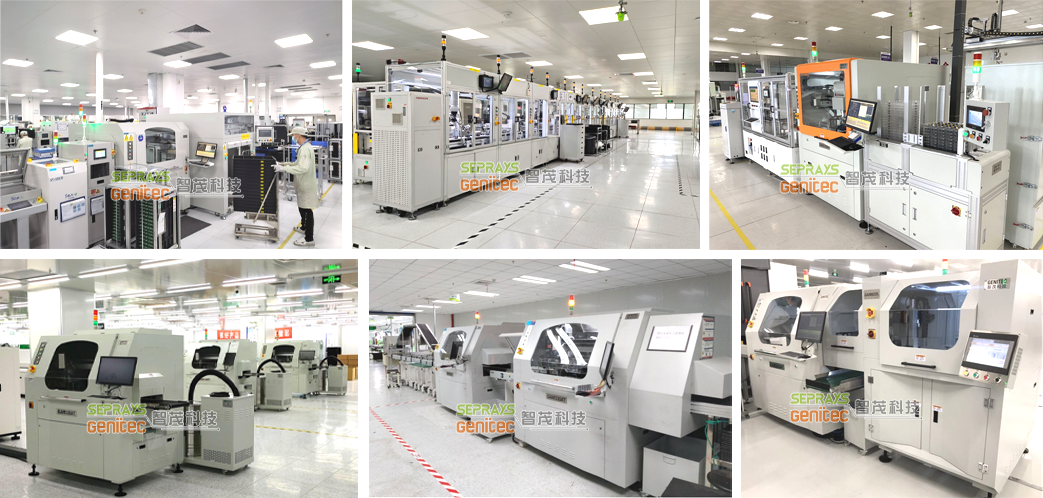

GAM340AT online PCB splitter is suitable for cutting large-size PCB boards such as PC computer PCB boards and servers.
