High efficiency
High precision
Low stress
No dust
Four-axis motion control platform, equipped with high-speed high-definition digital CCD camera, visual alignment and correction, the camera is equipped with barcode recognition capability.
High-precision spindle, speed 60000RPM, using the double-station platform one-in-one-out method to replace PCBA, greatly reducing work waiting time and increasing production.

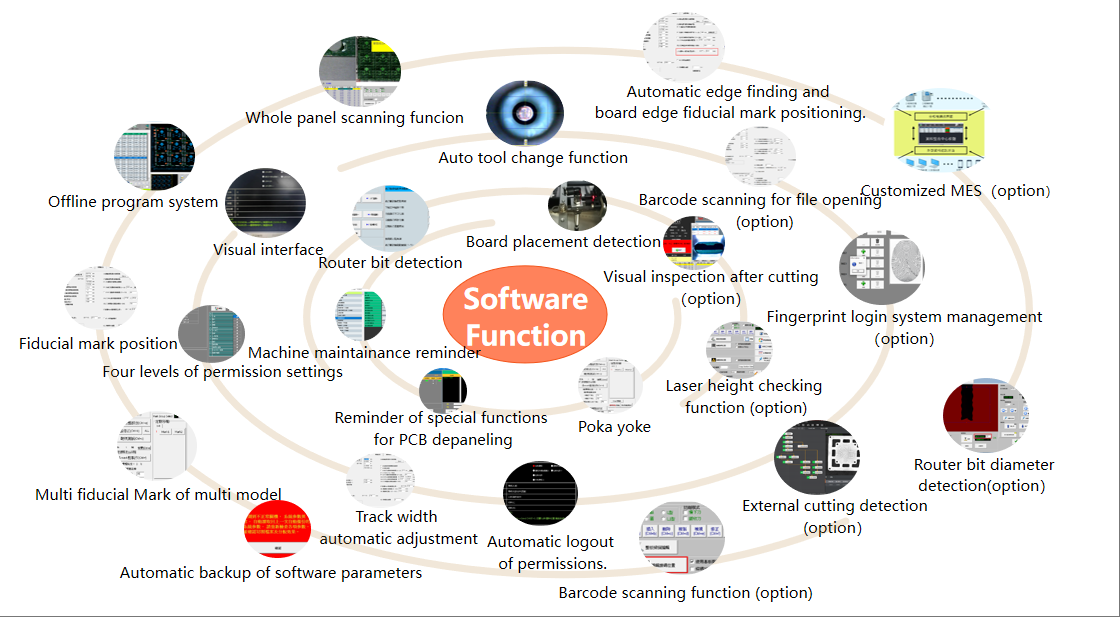

Quick and easy programming, equipped with full-plate scanning programming system, reducing line change time.
Equipped with servo motor + grinding screw, guide rail; provide customers with a high-performance, high-safety, high-stability PCBA board separation equipment.
| Item | ZM300 |
| Valid Cutting Size | Top dust collection：X350*Y380mm，，，，，，，Bottom dust collection：X290*Y320mm |
| Cutting Shape | Tweening to line,L shape,U shape,Circle,Are |
| Processing Table | Dual-table |
| Repeat Precision | ±0.02mm |
| Cutting Precision | ±0.05mm |
| Max.Movement Speed | X:1000mm/s，，，，，，，Y1/Y2:1000mm/s，，，，，，，Z:300mm/s |
| Max.moving routing | X:750mm，，，，，，，Y1/Y2:510mm，，，，，，，Z:100mm |
| Spindle Speed | MAX.80000RPM Adjustable |
| Tool Change Type | Manual Tool Change（Standard）/Auto tool change（Option） |
| Cutting Speed | 1-100mm/s Adjustable |
| Operating Interface | Standard Operation Interface Windows 10" |
| Program teaching mode | Color CCD Imaging Vision-based Teaching Input |
| Pr | USB Interface |
| Control Method | PC+Control card |
| XYZ Driving mode | AC Servo motor |
| Size of milling tool | ?0.5-3.0mm |
| Main Power Supply Specifications | AC220V 50/60HZ 2KW |
| Main Air Supply | 0.6Mpa |
| Dimensions of machine（W*L*H） | 1240mm*1050*1450mm |
| Machine Weight | 500KG |
| Dust Collector Power | 4HP / 3HP / 5HP |
| Dimensions of dust collector（W*L*H） | 600*500*1300mm/600*600*1600mm/813*925*1800mm |
| Dust Collection Method | Top dust collection/Bottom dust collection/Bottom dust collection |
| Dust Collector Power Specifications | AC220V/380V 50/60HZ |
| Weight of dust collector | 125KG/165KG/290KG |
