Overview of core models: Accurately matching different production scenarios
Based on the modular design concept, Genitec Router Machine has launched a variety of models to fully cover the cutting needs from small module boards to large server motherboards:
Offline PCB Router Machine models:

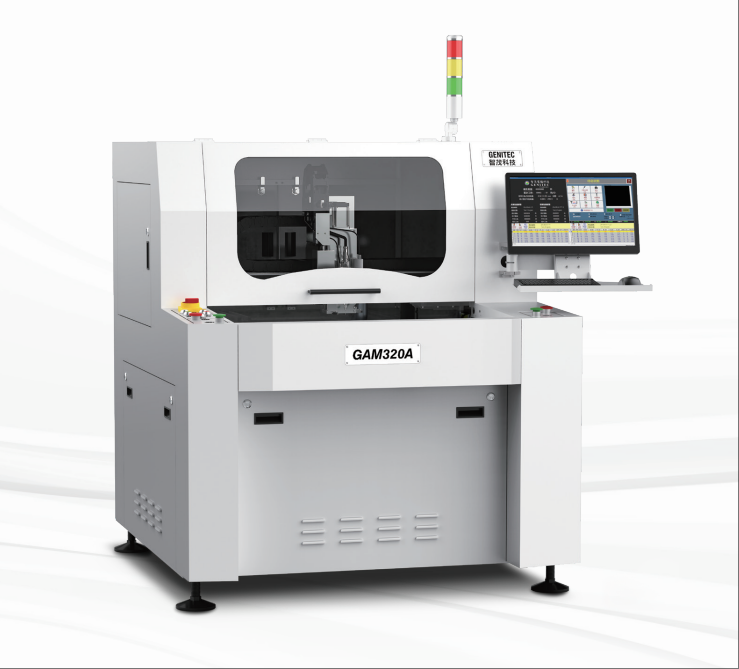

GAM320A standard model
The effective cutting size is 350×300mm, which meets the cutting needs of small high-precision PCB boards such as mobile phones, digital cameras, and GPS modules.
The dual-table design can perform cutting and loading and unloading simultaneously, reducing equipment idle time and increasing production capacity by more than 40%.
GAM320L large size model
The cutting size is upgraded to 450×500mm, specially designed for large PCB boards such as digital TVs, PC hosts, and servers, solving the pain points of easy warping and difficult stress control of large board splitting.
GAM330D dual-spindle offline machine
Dual ESD spindles work synchronously and independently control the Z axis; the gantry-type rigid structure ensures long-term stability.
Cost advantage: 30% lower investment than online models, suitable for small-batch orders of multiple varieties, and switching programs only takes 3 minutes.
GAM386 Offline High-Efficiency Model
Adopting the patented technology of "bottom cutting + downward suction dust collection", it has attracted wide attention at the 2023 Dongguan CMM Electronics Exhibition.
Taking into account high efficiency and simple operation, it is particularly suitable for the needs of multi-variety and small-batch PCB board separation.
GAM300 Basic Offline Board Separator
Core value: compact design (occupying an area of ＜1.5㎡), graphical programming of the operation interface; standard 60,000-rpm air-cooled spindle, supporting ∮0.8-3.0mm milling cutter.
Online Fully Automatic PCBRouter Machine: Seamless docking with SMT production line
GAM320AT Online Automatic Model
Integrated track automatic conveying system to realize the unmanned process of automatic board feeding → precise cutting → finished product/waste classification output.
Supports vacuum nozzle transfer and left and right flow configuration, easily embedded in the SMT production line, and 24-hour continuous operation.

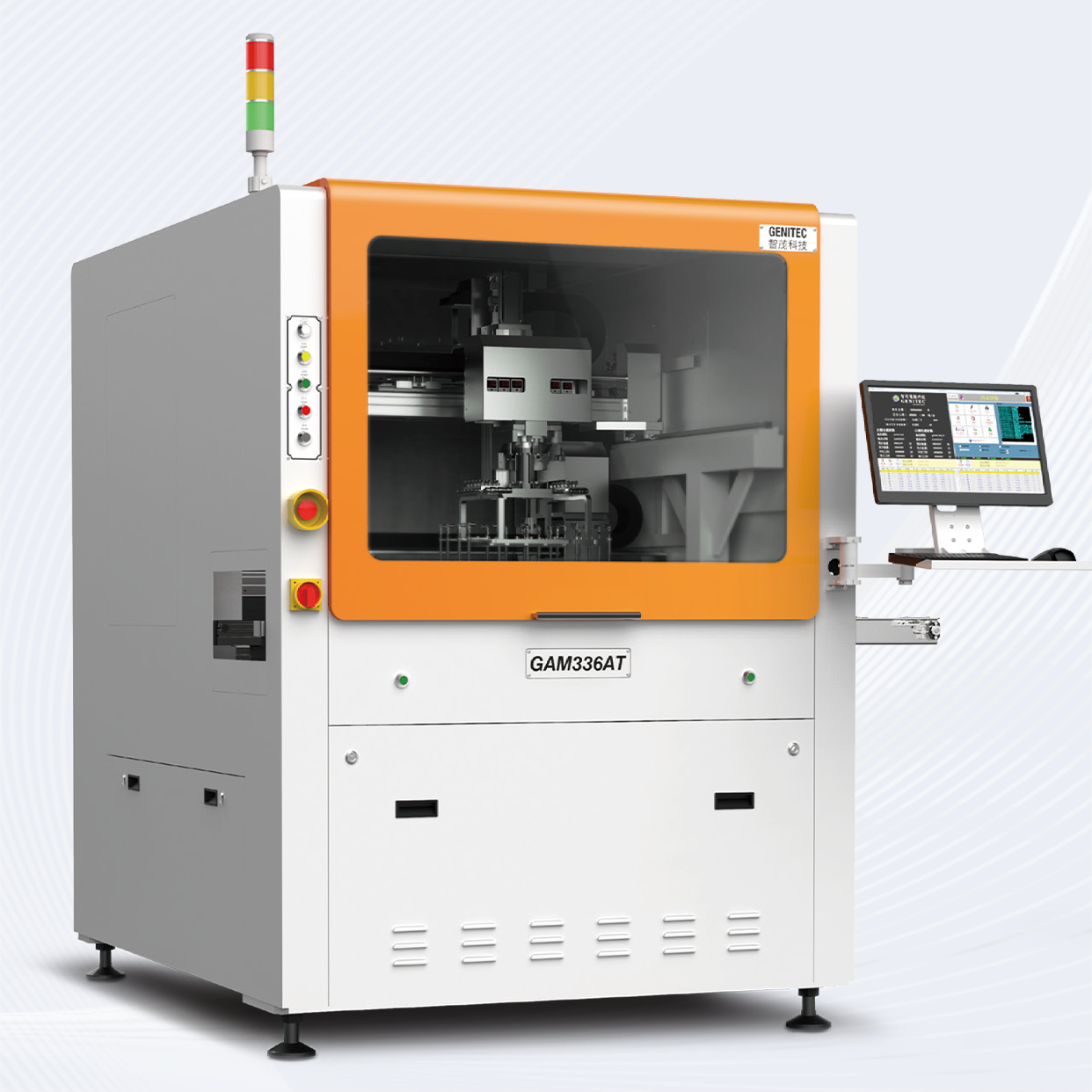

GAM336AT online fully automatic board splitter
Core functions: single transfer module with four-axis linkage, supporting 0-180° board placement; standard vacuum nozzle transfer; barcode reader, laser height measurement and milling cutter reverse installation/broken cutter detection module, etc.
Precision and efficiency: ±0.01mm repeat positioning accuracy, cutting speed 100mm/s; automatic tool change spindle (80,000rpm) + floating brush segmented cutting, extending the life of the milling cutter by 30%.
Applicable scenarios: PCBA such as mobile phone boards and wearable devices, supporting belt/track/fixture multi-mode discharge.
GAM360AT large online board splitter
Upgrade advantages: cutting size expanded to 600×500mm, dedicated to large boards such as server motherboards and automotive ECUs; dual CCD visual synchronous compensation to cope with high curvature special-shaped cutting.
Productivity breakthrough: production capacity reaches 1200 pieces/hour (based on 150×100mm boards), an increase of 70% over the standard type.
GAM380AT fixture-free PCBRouter Machine
Say goodbye to custom tooling and fixtures, saving 10W+ fixture costs per year;
No need to wait for production changeover, line change time is reduced from two hours to 10 minutes, and new product models can be switched with one click.
Solve the problem of small batch and multiple models of PCB.
2. Five major technical advantages: define high standards in the industry
1. Intelligent visual system: cutting accuracy leaps
The whole series is equipped with a high-speed CCD visual automatic correction system, which compensates for position deviation in real time through intuitive programming of color images.
The cutting accuracy reaches ±0.02mm, and the repeated positioning accuracy is ±0.01mm, which completely solves the problems of V-CUT burrs and component offset.
2. Dual-platform collaboration: efficiency breaks through bottlenecks
The patented dual-table structure realizes simultaneous cutting and board placement.
Compared with a single device, the waiting time is reduced by 60%, and the production capacity is increased to more than 120 pieces per hour (based on 100×80mm boards).
3. Core power system: guarantee of stability and precision
Adopt imported original air-cooled spindle, with adjustable speed of 80,000RPM.
The spindle and drive motor are separated, with high heat dissipation efficiency and low vibration, ensuring smooth cutting of board edges without chipping, and extending the service life by 30%.
4. Fully automatic dust removal: clean production
Equipped with 3HP-6HP high-power dust collection system, adopting straight-through filter bag and air outlet switching device.
Dust collection rate>99%, noise less than 65dB, and maintenance cycle extended by 3 times.
5. Simple operating system: quick start
Windows interface supports graphical programming and USB instant backup program.
New employees can operate independently in just 2 days after training, greatly reducing technical dependence.
3. Why do global customers choose Genitec board splitter?
Full shape adaptability
Straight line, arc, L-shaped, U-shaped and curve interpolation cutting can be done with one machine, whether it is stamp hole, hollow board or special-shaped board, it can efficiently split the board.
Flexible and rigid capacity configuration
Flexible selection of standard fixtures and customized fixtures, free switching between stand-alone mode and online automatic loading and unloading solutions to adapt to order fluctuations.
Global service guarantee
Direct service centers are set up in South China, East China, North China, Southwest China and Taiwan, China, covering 31 countries overseas.
Promise of 10-minute telephone response + 8-hour on-site support, 1-year warranty for the whole machine, and lifetime maintenance.
IV. Panoramic coverage of application scenarios
Consumer electronics: high-finish cutting of mobile phone motherboards, TWS headset modules, and smart watch micro-boards
Automotive electronics: engine control unit (ECU), radar board stress-resistant sub-board
Industrial equipment: deformation-free segmentation of industrial control hosts and large server boards
Communication field: 5G modules, precision V-CUT processing of optical fiber routing boards
Upgrade your sub-board process immediately!
Whether you are facing the challenges of stress control of special-shaped board sub-boards, insufficient precision of micro-boards, or automation transformation of production lines, Genitec provides you with exclusive PCB sub-board solutions with more than 30 years of technology accumulation.
>>> Get your PCBA panel splitting solution consultation for free <<<
The professional technical team will analyze the board characteristics for you, recommend the best model, and provide trial cutting services!
