ZAM330 dual-platform PCB laser depaneling machine, Online PCB depaneling machine, can be connected to automated production lines

ZAM330 dual platform laser panel splitter

Seprays has been focusing on the research and development of laser PCB depaneling machines for more than 30 years, providing free depaneling solutions

Clean processing

Multi-function, automated

Dual platform, high speed, high precision

Easy and fast operation

Online consultation

+86-0769-82855018

Introduce Parameter Case After Sales

Introduce

Direct data drive: immediate production, fast product introduction

High degree of automation: equipped with a conveyor, ready to enter the line at any time, high degree of automation

Breaking through mechanical limits: laser replaces molds, avoids distortion, and breaks through mechanical limits

Contactless processing: materials sublimate when exposed to light, no contact is required, and stress damage is eliminated

Precise laser control: Precise laser control, fixed depth and quantity, micron-level extreme structure

Parameter

Item	ZAM330(Inline-Fixture Cutting, No Waste)
Operating System	Windows 7 Interface
Data Processing Software	CircuitCAM 7
Control Software	DreamCeaTor 3
Laser	Option green laser, UV laser,Picosecond laser, Nanosecond laser
Maximum Processing Area	350mm×500mm （Double tables）
Scanning Galvo	intelliSCAN+RTC5
Telecentric Lens	Wavelength-Related
Reflector	Wavelength and Power-Related
Linear Motor	LMSA
Motion Control Card	GTS-400
CCD Light Source	Circular Light
Industrial PC	CPU:I5 Memory： 4GDDR3；；；；；；；Hard Drive： 1T SATA
Monitor	17-Inch LCD Standard Display
Platfrom	Granite

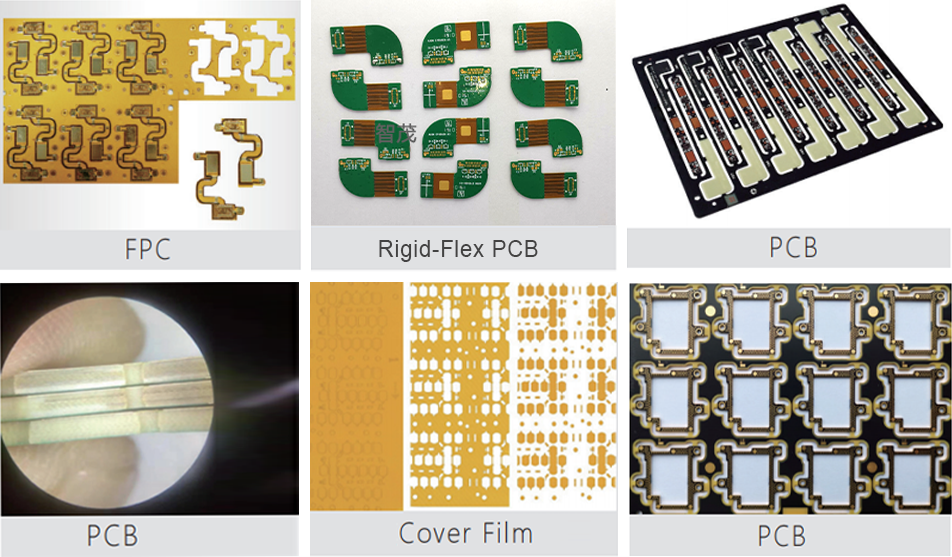

Case


After Sales

Exclusive Services

Within 10 minutes, provide feedback to users regarding various difficult issues encountered while using the device, and establish a 1V1 exclusive after-sales service group for users.

Remote service

Provide users with a 7 * 24H hotline; Based on the feedback of the fault information, analyze and locate the fault through remote telephone support, remote login, and other methods, and solve it.

Field service

Arrive at the work site within 8 hours and solve the problem within 1 working day. 2-4 days of equipment safety operation and application training. In case of breach of contract, it shall be handled in accordance with the contract provisions.

Service Locations

We have sales and service support in 9 cities domestically and 28 countries and regions overseas, responding to customers' current and future needs in a timely manner.

Benchmark service

Follow up call for each attendance; Provide video tutorials and phone guidance for accessory replacement and equipment maintenance; Free follow-up month in December every year. Continuously collecting user suggestions, continuously updating and iterating software to improve user production quality and efficiency, and maintaining it for life.
