Small footprint, more flexible placement.
High-power laser, sustainable processing.
Combination of precision and stability
Granite machine, cross-shaped structure.
X/Y axis is more stable, compact and easy to use.
Imported scanning galvanometer, control card and telecentric lens.
No high-voltage power supply, convenient, safe and easy to use.
1. Use stable performance picosecond laser, ultraviolet and green laser, cold light source, laser cutting heat affected zone is less than 10μm, high-precision scanning galvanometer, high precision and long life;
2. High-precision linear motor working platform, high precision and fast speed;
3. Optional CCD automatic positioning and automatic correction; vacuum adsorption fixed plate, no need for alternative fixtures;
4. The processing process is automatically controlled by computer software, and the software interface provides real-time feedback to understand the processing status in real time;

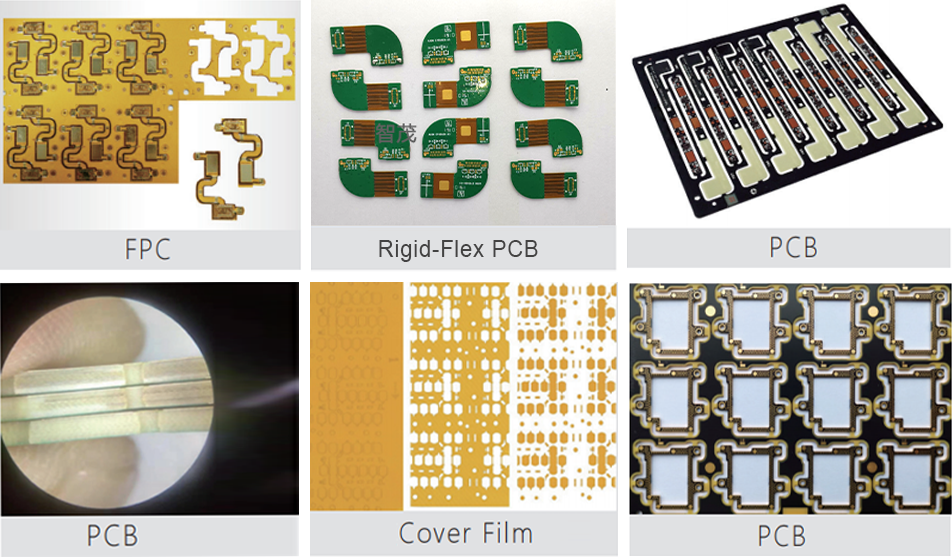

5. The minimum focus spot can reach 10μm, which is suitable for fine cutting and drilling of any organic/inorganic materials.
The panel separation function and parameters for end mills/fixtures are easy to set.
Processing efficiency and end mill usage data are clearly displayed.
The historical message pane makes it easy to query operation records.
It features router bit life management, maintenance alerts, and spindle speed settings management.
The account password can be set to differentiate user permissions for different levels of personnel according to management needs.
A fingerprint recognition module can be added for convenient management.
Equipped with high-speed CCD vision automatic calibration system.
Can simulate cutting paths to assist in program programming, ensuring cutting path accuracy.
Combined with full-board scanning and offline programming functions, it enhances path editing efficiency.
Cutting programs can be edited offline and directly imported into the machine, improving utilization rate.
Simpler, more user-friendly, with automatic recognition of cutting paths.
After full-board PCB scanning, editing allows for quick modifications to cutting paths, improving programming efficiency.
Cutting line colors are selectable, making it easier to identify different color PCBs.
By adding a laser height measurement module, the height of the PCBA when placed into the fixture can be checked to ensure it is correct, preventing cutting deviation and damage during the depaneling process due to improper placement of the PCBA or small debris inside the fixture.
By calling the existing program, fixture errors are avoided, enabling rapid program retrieval and quick changeover.
Item | ZAM310S |
Laser | Green and UV; Picosecond and Nanosecond Options |
Laser Wavelength | 355nm/532nm |
Overall Accuracy | ±20μm |
Repetition Accuracy | ±2μm |
Processing Head | Galvo scanner，，，， ，，Scanlab |
Vision Alignment | CCD，，，， ，，1,600,000 pixels |
Max. working area | 350mm*300mm |
Working table height | 900±50mm |
Working table | Granite Table, Linear Motor |
Security | Safety Light Curtain, Automatic Door |
Data Processing Software | CircuitCAM 7 Standard |
Driver Software | DreamCreaTor 3 |
Dimensions (Height × Width × Depth) | 1,624mm*917mm*1,207mm |
Weight | 700kg |
Power | 380VAC/ 50Hz, 4.5kW |
