Laser stress-free board splitting,
Can cut PCBA/FPCA of any shape,
Micron-level high-precision cutting, automatic positioning, focusing, etc.;
The suction system can completely eliminate cutting exhaust gas, eliminating hazards and environmental pollution.
Precise thermal control
Clean processing
Multi-function
Safety
Configurable automation
High speed, high precision
High degree of freedom
Simple and fast operation
*Power detection system
By adding a laser height measurement module, the height of the PCBA when placed into the fixture can be checked to ensure it is correct, preventing cutting deviation and damage during the depaneling process due to improper placement of the PCBA or small debris inside the fixture.
The barcode camera can dynamically capture and recognize QR codes from any position in real-time applications.
By adding a barcode reader, the barcode on the PCBA can be recorded to the computer, or the MES system can receive server messages to identify the NG board's barcode and perform classification processing.
By calling the existing program, fixture errors are avoided, enabling rapid program retrieval and quick changeover.
With over 30 years of independent software development, the PCB depaneling machine uses self-developed software, ensuring stability and reliability, and preventing board damage caused by bugs.
The PCB depaneling machine uses an integrated welded design structure, ensuring stability and high strength.
It is made of cast aluminum with a one-piece molding process, offering excellent oxidation resistance, no deformation, no displacement, long service life, and guaranteed precision.
Optional Central Control System: Unified management and real-time monitoring via network IP.
Remote Device Unified Management: Remote monitoring via mobile app.
Parameters | ZAM310L |
Laser output power | 20W |
Pulse width | nanosecond |
Laser wavelength | 355nm |
Maximum Processing Area | 520mm×520mm |
Device platform | Granite platform, linear motor |
X/Y/Z axis resolution | 1μm |
Repetition Accuracy | ≤±2μm |
Data Processing Software | CircuitCAM 7 Standard |
Equipment Driver Software | DreamCreaTor 3 |
Camera Target Alignment System | Option |
Industrial Vacuum Cleaning System | Option |
Dimensions（W x H x D) | 1,250mm×1,560mm×1760mm |
Weight | 1,500kg |
Power supply | 380VAC/ 50Hz,3.5kW |
Ambient temperature | 22℃±2℃ |

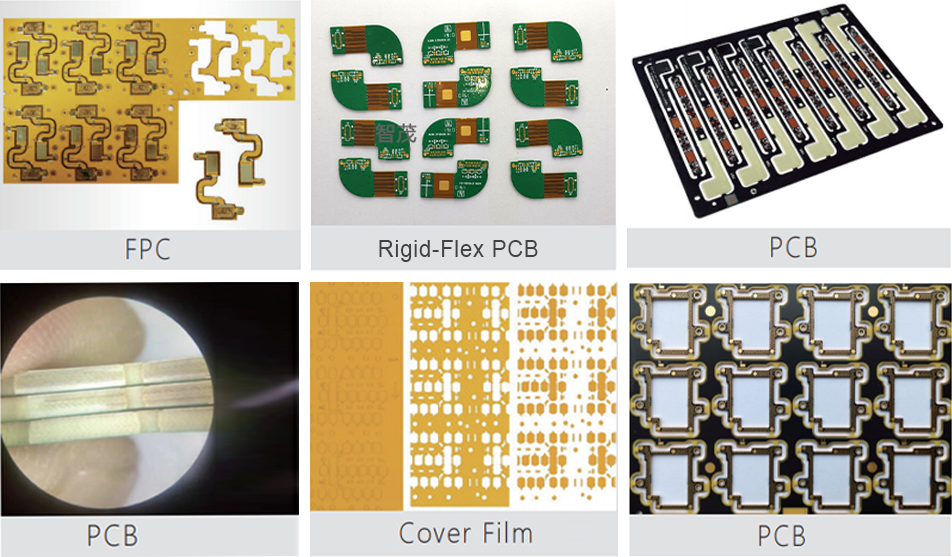

It is suitable for micro-processing of various materials, including high-precision and fast full cutting of PCB outlines, including assembled circuit boards, PCB breakpoint cutting, FPC outline cutting, cover film cutting, ceramic drilling, rigid-flex circuit board uncovering, and outline cutting.
